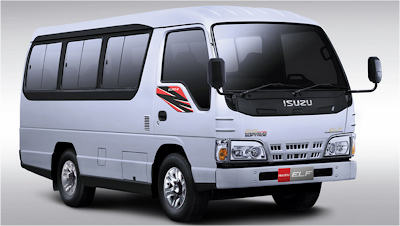

ISUZU ELF
NHR 55 MICROBUS
*) Estimasi harga on the road 2015 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi | ||
|---|---|---|
| Panjang Keseluruhan | 4590 | (mm) |
| Lebar Keseluruhan | 1695 | (mm) |
| Tinggi Keseluruhan | 2127 | (mm) |
| Jarak Terendah | 190 | (mm) |
| Jarak Poros Roda | 2490 | (mm) |
| Jarak Pijak Roda Depan | 1425 | (mm) |
| Jarak Pijak Roda Belakang | 1405 | (mm) |
| Seating Capacity | - | (person) |
| Front Axle Capacity | 1015 | (kg) |
| Rear Axle Capacity | 1085 | (kg) |
| Mesin | ||
|---|---|---|
| Model/Tipe | 4JB1-TC | |
| Sistem injeksi bahan bakar | - | |
| Isi silinder | 2771 | (cc) |
| Tenaga maksimum | 101/3400 | (PS/rpm) |
| Torsi maksimum | 22.5/2000-3200 | (Kgm/rpm) |
| Garis tengah x langkah | 93 x 102 | (mm) |
| Kapasitas Tangki | - | (liter) |
| Ban & Velg | ||
|---|---|---|
| Ukuran ban | - | |
| Bahan | - | |
| Ban Depan | 225/75/R16 | |
| Ban Belakang | 235/75/R16 |
| Berat | ||
|---|---|---|
| Curb Weight (berat kosong) | - | (kg) |
| Gross Vehicle Weight (berat total) | - | (kg) |
| Transmisi | ||
|---|---|---|
| Model | MSB5S | |
| C | - | |
| gigi 1 | 5.016 | |
| gigi 2 | 2.672 | |
| gigi 3 | 1.585 | |
| gigi 4 | 1.000 | |
| gigi 5 | 0.770 | |
| gigi 6 | - | |
| gigi 7 | - | |
| gigi 8 | - | |
| Rev | 4.783 | |
| Final Gear Ratio | 4.875 |
| Fitur & Standard | ||
|---|---|---|
| Air Conditioning | - | |
| Radio CD+MP3 | Yes | |
| Power Steering | Yes |
| Lain-Lain | ||
|---|---|---|
| Kursi supir | - | |
| Seat belt | Yes | |
| Accu | 12-75 | (V-AH) |
| Altertnator | 12-60 | (V-A) |
| Kapasitas Tangki | 75 | (liter) |
| Max. Gradeability | 25 | (%) |
| Max. Speed | 106 | (Km/h) |
| Clutch Size | - | (mm) |
